HUANGHAI BRAD, JMC BRAND BUS
Manufactured by:
LIAONING HUANGHAI AUTOMOBILE GROUP CO. LTD.
Authorized sole distributor in Bangladesh
EXIMCO GROUP OF COMPANIES
|
||
|
|
HUANGHAI BRAD, JMC BRAND BUS Manufactured by: LIAONING HUANGHAI AUTOMOBILE GROUP CO. LTD. Authorized sole distributor in Bangladesh EXIMCO GROUP OF COMPANIES |
|
| Motorcycle | Car | Bus | 3 Wheeler | Monitor | Television | Ballpen | Machineries | |||
|
HUANGHAI |
Descriptions |
||
 |
Rear mounted CA6110Z5A2EST diesel+CNG 125kw dual fuel engine made in China, without A/C. For details about this model please contact with us... |
||
|

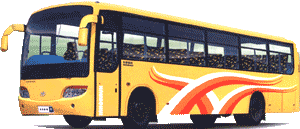

Model: DD6102K02 |
|||
| ◄back | |||
|
HUANGHAI |
Descriptions |
||
 |
Fitted rear mounted Cummins BG-195 dedicated CNG engine 143kw 195hp made in USA, without A/C. For details about this model please contact with us... | ||
| Fitted rear mounted Cummins BG-195 dedicated CNG engine 143kw 195hp made in USA, with A/C. For details about this model please contact with us... | |||
|

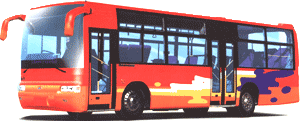

Model: DD6103HSC |
|||
| ◄back | |||
|
HUANGHAI |
Descriptions |
||
 |
Fitted front mounted CA6110Z5A2EST CNG+diesel dual fuel engine 125kw 170hp made in China, without A/C. For details about this model please contact with us... | ||
|

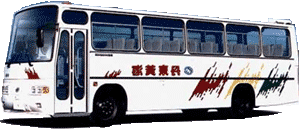

Model: DD6991 |
|||
| ◄back | |||
|
HUANGHAI |
Descriptions |
||
 |
Fitted rear mounted Cummins BG-230 dedicated CNG engine 169kw 230hp made in USA, with A/C. For details about this model please contact with us.. | ||
| Fitted rear mounted Cummins BG-230 dedicated CNG engine 169kw 230hp made in USA, without A/C. For details about this model please contact with us.. | |||
|

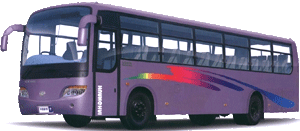

Model: DD6113K01 |
|||
| ◄back | |||
|

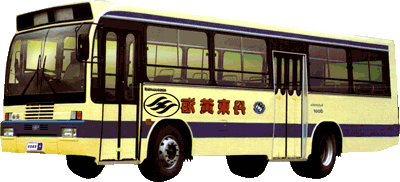

HUANGHAI BRAND BUS |
||
|
|
||
|
Model: DD6980QS (gasoline+CNG or gasoline+LPG dual fuel engine, 5560cc) |
||
|
TECHNICAL SPECIFICATIONS |
| MODEL | DD6980QS | ||
| COMPLETE BUILT-UP BUS | |||
| Seating capacity | 63 | ||
| Overall dimensions (mm):LxWxH | Overall dimensions (mm):LxWxH | ||
| Wheelbase (mm) | 4700 | ||
| Front and rear track (mm) | 1900/1770 | ||
| Approach and departure angle (°) | 11.86/10.92 | ||
| Front and rear overhang (mm) | 2000/3050 | ||
| Minimum ground clearance (mm) | ≥265 | ||
| Gross vehicle weight (kg) | 11200 | ||
| GVW load distribution (kg) | 4000/7200 | ||
| Maximum speed (km/h) | ≥87 | ||
| Maximum grade ability (%) | ≥20 | ||
| Minimum turning diameter (m) | ≤22 | ||
| Fuel consumption (L/100km) | ≤24(under given conditions) | ||
| Braking distance (m) | ≤8(Vo=30km/h) |
| ENGINE | ||||
| Model (front mounted engine) | CA6102N1 gasoline+CNG or gasoline+LPG dual fuel engine,5560cc | |||
| Maximum power output (kw) | 89(CNG) or 97(LPG) kw (at 3000r/min) | |||
| Maximum torque (N.m) | 335/362(at 1200-1400 r/min) | |||
| CHASSIS | ||||
| Clutch | Single dry plate, diaphragm spring type, hydraulic operated | |||
| Transmission | Manual transmission with synchronizers on 2,3,4,5 and6 speeds | |||
| Steering gear | Recirculating ball type, integral hydraulic booster | |||
| Rear axle | Pressed and welded steel banjo housing, double reduction, hypoid gear, ratio 6.33:1 | |||
| BODY | ||||
| Body construction | Semi-integral | |||
| Number and type of passenger door | 2,two leaf folding doors | |||
| Door first step height (mm) | ≤400 | |||
| Seat layout | 3+3 | |||
| FUEL SYSTEM | ||||
| Number of Petrol tank | 1 | |||
| Petrol tank Capacity | 150L | |||
| Number of CNG or LPG Cylinder | 6 | |||
| Cylinder Capacity | 80L | |||
| Send Inquiry For this Model | ||||
| ◄back |
|
|||
|

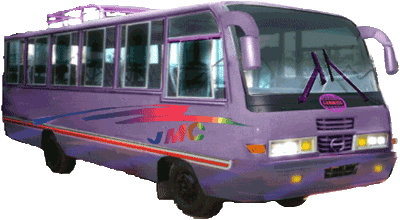

JMC BRAND BUS |
|||||
|
|
|||||
|
MODEL: NJ6701DHRY2 (DIESEL ENGINE 4324cc) |
|||||
|
TECHNICAL SPECIFICATIONS |
|||||
| MODEL | NJ6701DHRY2 | ||||
| CHASSIS | Right hand drive Front Engine Bus Chassis | ||||
| Front axle | I beam construction | ||||
| Rear axle | Full float, single reduction. | ||||
| Steering | Power steering | ||||
| ENGINE | |||||
| MODEL | YZ4108Q | ||||
| TYPE | 4 Cylinder in line, diesel, with direct fuel injection. | ||||
| COOLING SYSTEM | Water cooled. | ||||
| Max. output | 81Kw at 3000rpm | ||||
| Max. torque | 280Nm, at 2000rpm | ||||
| Displacement | 4324cc | ||||
| Bore x Stroke | 108x118 | ||||
| Compression | 17.5:1 | ||||
| Suspension | |||||
| Front & Rear | non-independent suspension front and rear, short spring, hydraulic absorber and cross-stable lever | ||||
| Transmission | 5 speed manual with synchromesh on 2nd to 5th gears. | ||||
| Gear ratios and Performance | Drive | 4x2 | |||
| Max. speed (km/h) | 95 | ||||
| International gear box Transmission Gear ratio | ratios | ||||
| 1st | 4.766 | ||||
| 2nd | 2.496 | ||||
| 3rd | 1.429 | ||||
| 4th | 1 | ||||
| 5th | 0.728 | ||||
| rev | 4.774 | ||||
| Angle of approach | 30 | ||||
| Angle of departure | 13 | ||||
| Clutch | Dry, single plate, hydraulic control, diaphragm spring. diameter | ||||
| Brakes | Service brake | Air brake | |||
| Parking brake | center drum brake | ||||
| Dimensions | |||||
| Wheel base | 3800mm | ||||
| Overall length | 6835mm | ||||
| Tread | Front | 1810mm | |||
| Rear | 1600mm | ||||
| Wheel and tire | Tire size | 8.25-16 | |||
| No. of tires | 6 | ||||
| Electrical equipment | |||||
| Batteries | 24v | ||||
| Send Inquiry For this Model | |||||
|

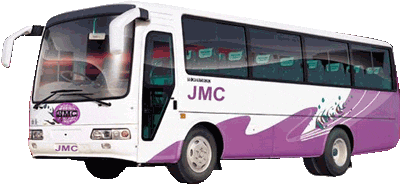

JMC BRAND BUS |
||||
|
|
||||
|
MODEL: NJ66001HDDG (DIESEL ENGINE 3298cc) |
||||
|
TECHNICAL SPECIFICATIONS |
||||
| MODEL | NJ66001HDDG | |||
| CHASSIS | Right hand drive Front Engine Bus Chassis | |||
| Front axle | I beam construction | |||
| Rear axle | Full float, single reduction. | |||
| Steering | Rack and pinion mechanical steering | |||
| ENGINE | ||||
| MODEL | 4100QB-1A | |||
| TYPE | 4 Cylinder in line, diesel, with direct fuel injection. | |||
| COOLING SYSTEM | Water cooled | |||
| Max. output | 62.5Kw at 3400rpm | |||
| Max. torque | 201Nm, at 2200rpm | |||
| Displacement | 3298cc | |||
| Bore x Stroke | 100x105 | |||
| Compression | 17.5:1 | |||
| Suspension | ||||
| Front & Rear | non-independent suspension front and rear, short spring, hydraulic absorber and cross-stable lever | |||
| Transmission | 5 speed manual with synchromesh on 2nd to 5th gears. | |||
| Gear ratios and Performance | Drive | 4x2 | ||
| Max. speed (km/h) | 85 | |||
| International gear box Transmission Gear ratio | ratios | |||
| 1st | 5.568 | |||
| 2nd | 2.832 | |||
| 3rd | 1.634 | |||
| 4th | 1 | |||
| 5th | 0.814 | |||
| rev | 5.011 | |||
| Angle of approach | 25 | |||
| Angle of departure | 20 | |||
| Clutch | Dry, single plate, hydraulic control, diaphragm spring. diameter | |||
| Brakes | Service brake | vacuum assisted brake | ||
| Parking brake | center drum brake | |||
| Dimensions | ||||
| Wheel base | 3308mm | |||
| Overall length | 5772mm | |||
| Overall width | 1945mm | |||
| Tread | Front | 1675mm | ||
| Rear | 1485mm | |||
| Wheel and tire | Tire size | 6.50-16 | ||
| No. of tires | 6 | |||
| Electrical equipment | ||||
| Batteries | 24v | |||
| Send Inquiry For this Model | ||||
|
