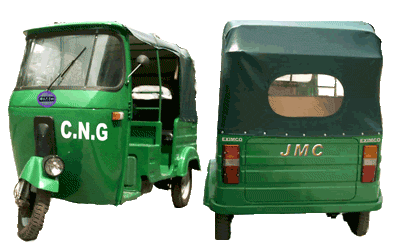

JMC Brand C.N.G Three Wheeler |
|||
|
|
|||
|
Model: JMC-SP 200 (C.N.G + PETROL) |
|||
|
TECHNICAL SPECIFICATIONS |
|||
| Engine and Transmission: | |||
| Type: | Single Cylinder, 4 Stroke, Water cooled Gasoline Engine | ||
| Borax Stroke (mm): | 69 x 53 | ||
| Engine Dimention (CC): | 198 CC | ||
| Maximum Net Power (HP RPM) | 12.5KW/8000r/min | ||
| Maximum Net Torque (NMAT RPM) | 15.5N.m/7200r/min | ||
| Idle Speed (RPM) | 1500RPM | ||
| Ignition System(RPM): | CDI | ||
| Lubrication: | 10W/40SF | ||
| Starting: | Electric Start | ||
| Transmission: | 5 Forward + 1 Reverse | ||
| Fuel Tank Capacity: | 7L | ||
| CNG Bottle Capacity: | 22L | ||
| Top Speed: | 80km/h | ||
| Fuel Consumption: | 367g/kw.h | ||
| CNG Consumption: | 2.5M3/100KM | ||
| Compression Ratio: | 9.2:1 | ||
| Spark Plug: | T4137J | ||
| Electrical | |||
| Battery: | 12V/36AH | ||
| Head Lamp: | 35/35W | ||
| Tail Lamp: | 15W | ||
| Side Indicator: | 10w | ||
| Horn: | 12VPC | ||
| Weight in Kg | |||
| Kerb Weight: | 350KG | ||
| Maximum Total Weight: | 750KG | ||
| Maximum Pay Load: | 400KG | ||
| Dimension in mm | |||
| Overall Length: | 2750mm | ||
| Overall Width: | 1340mm | ||
| Overall Height: | 1720mm | ||
| Wheel Base: | 2080mm | ||
| Saddle Height: | 700/DRIVER 750/PASSEGER | ||
| Ground Clearance: | 170mm | ||
| Turning Circle Diameter: | <6m (V=30/km/h) | ||
| Wheel Truck: | 1200 | ||
| Tire: | 4.00-12 | ||
| Suspensions: | |||
| Front: | Double | ||
| Rear: | Spring Plate + Hydraulic | ||
| Brake: | Hydraulic for three wheel | ||
| Gearshift | Hand Gearshift System Controlled By Electricity | ||
| Send Inquiry For this Model | |||
| ◄back | |||
|

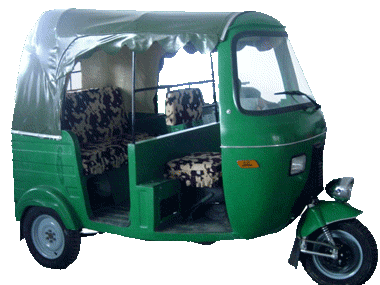

JMC Brand C.N.G Three Wheeler |
|||
|
|
|||
|
Model: JMC-JX 200 (C.N.G + PETROL) |
|||
|
TECHNICAL SPECIFICATIONS |
|||
| Engine and Transmission: | |||
| Engine Type | 4 Stroke. Water cooled. 200cc , Single Cylinder | ||
| Compression Ratio | 10.5 : 1 | ||
| Max Power | 11KW /7000±500RPM | ||
| Max Torque | 15NM/5500± 500RPM | ||
| Ignition Type | CDI | ||
| Carburetor | COLUMN PLUG | ||
| Transmission Type | 5 Forward + One Reverse. | ||
| Clutch Type | Wet Multidisc type (in hand left side) | ||
| Fuel Tank Capacity | 4 Litres. | ||
| CNG Tank Capacity | 22 Litres | ||
| Max. Speed | 50KM/PH | ||
| Reverse Gear | Under/with the hand staring. | ||
| Accelarator | Right side on hand | ||
| Starting | Electric Start | ||
| Idle speed (RPM) | 1,300r/min 6100 | ||
| Consumption of oil | 4.2L/100KM | ||
| Consumption of Gas (CNG) | 5.175M3/100KM | ||
| Electrical | |||
| Battery | 12V 36AH | ||
| Head Light (single) | 70W | ||
| Tail Light | 10Wx6 | ||
| Side Indicator Light | 10Wx2 | ||
| Horn | 12V DC | ||
| Weight in Kg | |||
| Kerb Weight | 345 Kg | ||
| Max. Pay load | 330 KG | ||
| Max. Total Weight | 675 KG | ||
| Dimension in mm | |||
| Overall Length | 2,560mm | ||
| Overall Width | 1,370mm | ||
| Overall Height | 1,855mm | ||
| Wheel Base | 1,860mm | ||
| Ground Clearance | 150mm | ||
| Saddle Height | 810 mm | ||
| Minimum Turning Radius | 3.5m Kerb | ||
| Acceleration Braking Distance | 6M at 30KM/Hr | ||
| Wheel Truck (Rear) | 1,220mm | ||
| Tyre (Front and Rear) | 4.0 –12 | ||
| Suspensions: | |||
| Front Absorber | Suspension Helical coil spring | ||
| Rear Absorbe | Suspension plate spring and hydraulic double acting shock | ||
| Front Brakes | Hydraulic Brake | ||
| Rear Brakes | Hydraulic Brake | ||
| Send Inquiry For this Model | |||
|
